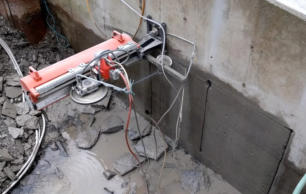

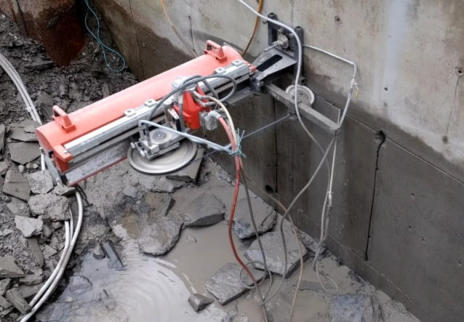

Wire
sawing
works
by
using
a
beaded
diamond
wire
wrapped
around
the
item
to
be
cut
and
then
through
a
series
of
pulleys,
allowing
virtually
any
depth
or
shape
of
structure to be cut.
The
wire
is
cooled
by
a
jet
of
water
sprayed
onto
the
wire
at
all
times,
this
helps
with
the
cutting
and
keeps
the
electric
motors
from
over heating.
The
wire
is
pulled
through
the
structure
and
any
excess
wire
is
then
stored
around
the
pulley
system.

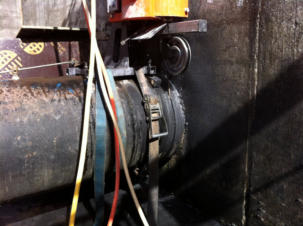

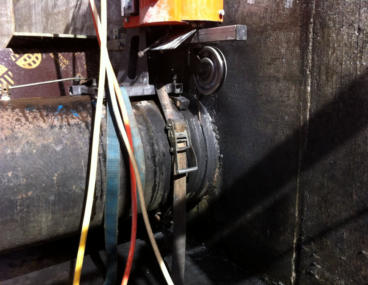

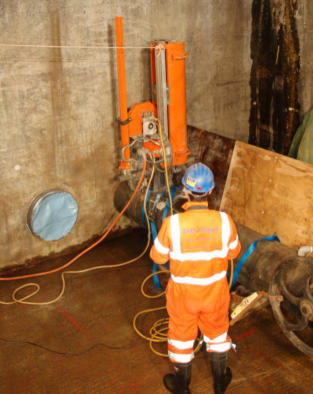

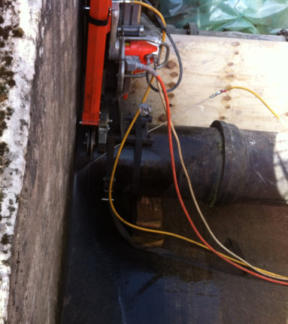

This
method
is
extremely
useful

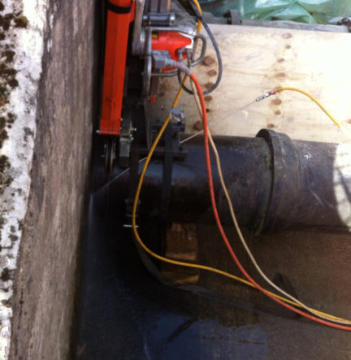

in
cutting
through
steel
pipes
when
carrying
out
renewal
works
by
water
companies.
Wire
sawing
is
ideal
for
cutting
larger
sections
of
masonry,
reinforced
concrete
or
stone,
as
there
are
very
few
restrictions
on
the
size
and
depth
of
openings
as
the
video
above demonstrates.
This
is
a
fast
method
of
cutting,
with
low
noise
emissions.
Wire
sawing
can
be
carried
out
horizontally
or
vertically
for
any
awkward
shapes
making
this
an
extremely
versatile
cutting method
Track Sawing
Wire Sawing

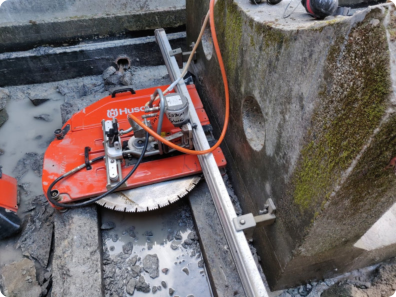

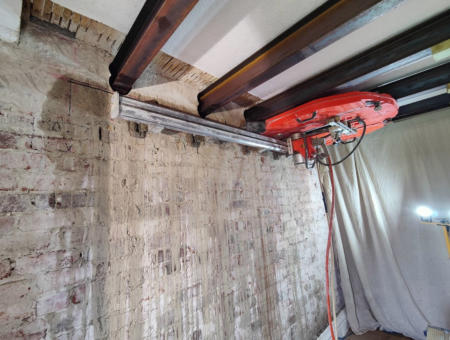

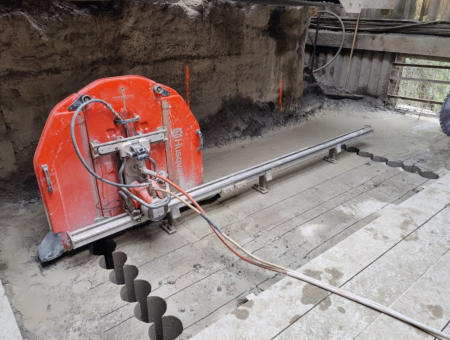

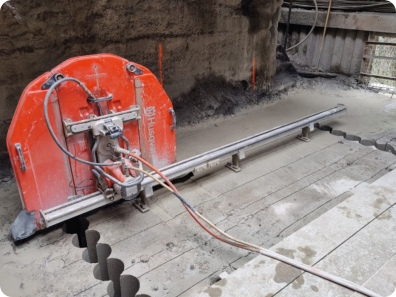

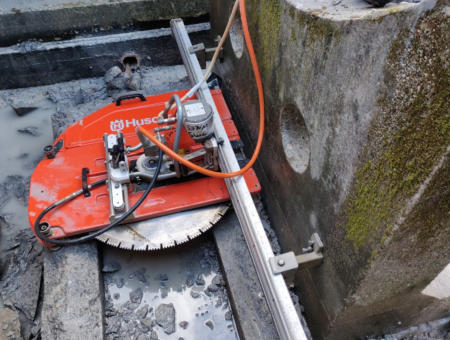

Track
saws
are
capable
of
cutting
either
horizontally
or
vertically,
fixed
onto
a
wall
or
floor.
SMS
Wales
use
the
latest
high
frequency
Husqvarna
electronic
equipment
remotely controlled.

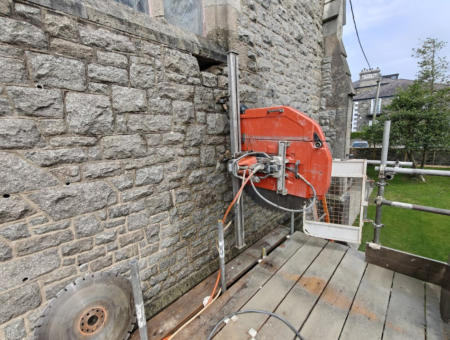

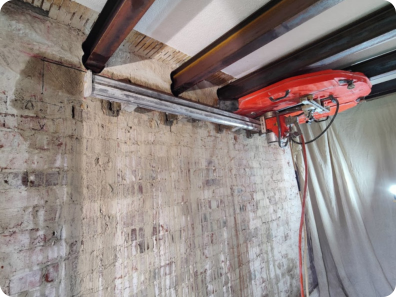

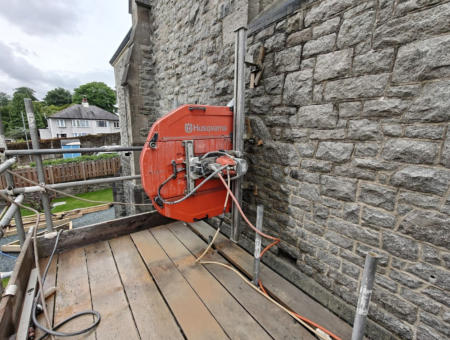

Track
mounted
wall
saws
are
light
in
weight
and
cut
clean
up
to
530mm
in
concrete
and
stone,
giving
precise
dimensional
door,
vent
and window openings.
The
high
frequency
track
saw
has
a
3
phase
electric
power
unit
controlling
a
3
phase
power
head,
which
is
operated
by
remote
control,
allowing
the
operator
to
be
positioned away from the cutting operation.
The
cutting
is
carried
out
by
making
a
series
of
passes
along
the
length
being
cut,
until
the
correct depth is achieved.
Track saws are capable of cutting either
07787 532 282 01286 673 843

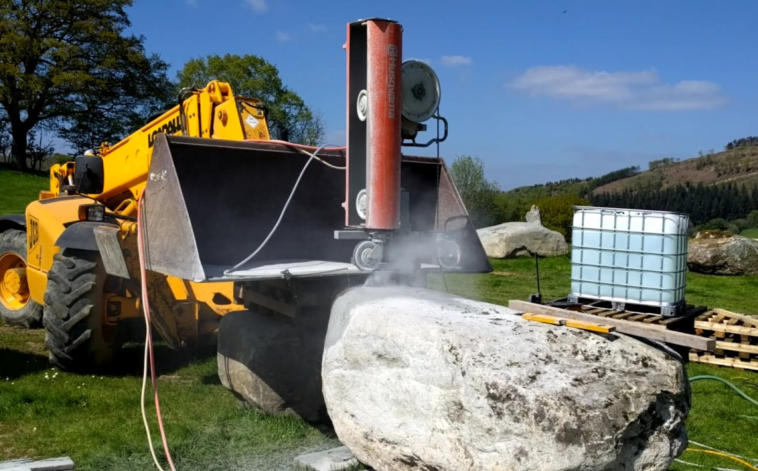

Glacial boulder supplied by Mid Wales Stone, for more
